API Documentation

Introduction

Canopy Wave supports a set of REST API to enable servers to develop management clients or to integrate VMS functionality into users' own custom management infrastructure.

Obtaining an API Key

To manage Canopy Wave Cloud via the API, users must first register for an account at Canopy Wave (https://cloud.canopywave.io). After registering, follow these steps to generate an API key.

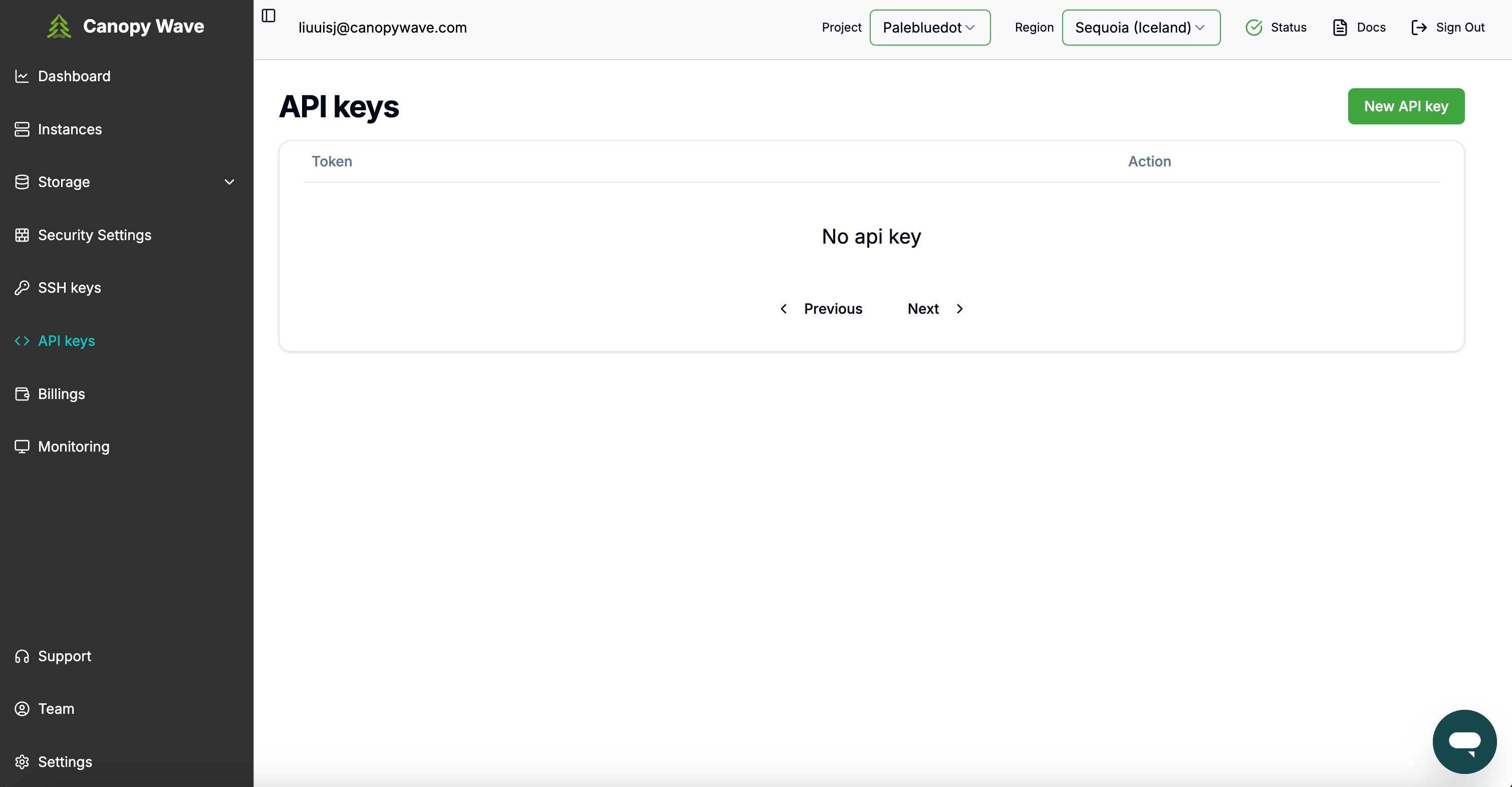

  1. In the left navigation bar, click on API Keys.
  2. Click on New API Key to create a new key.
  3. Copy the generated API key for use in future API calls.

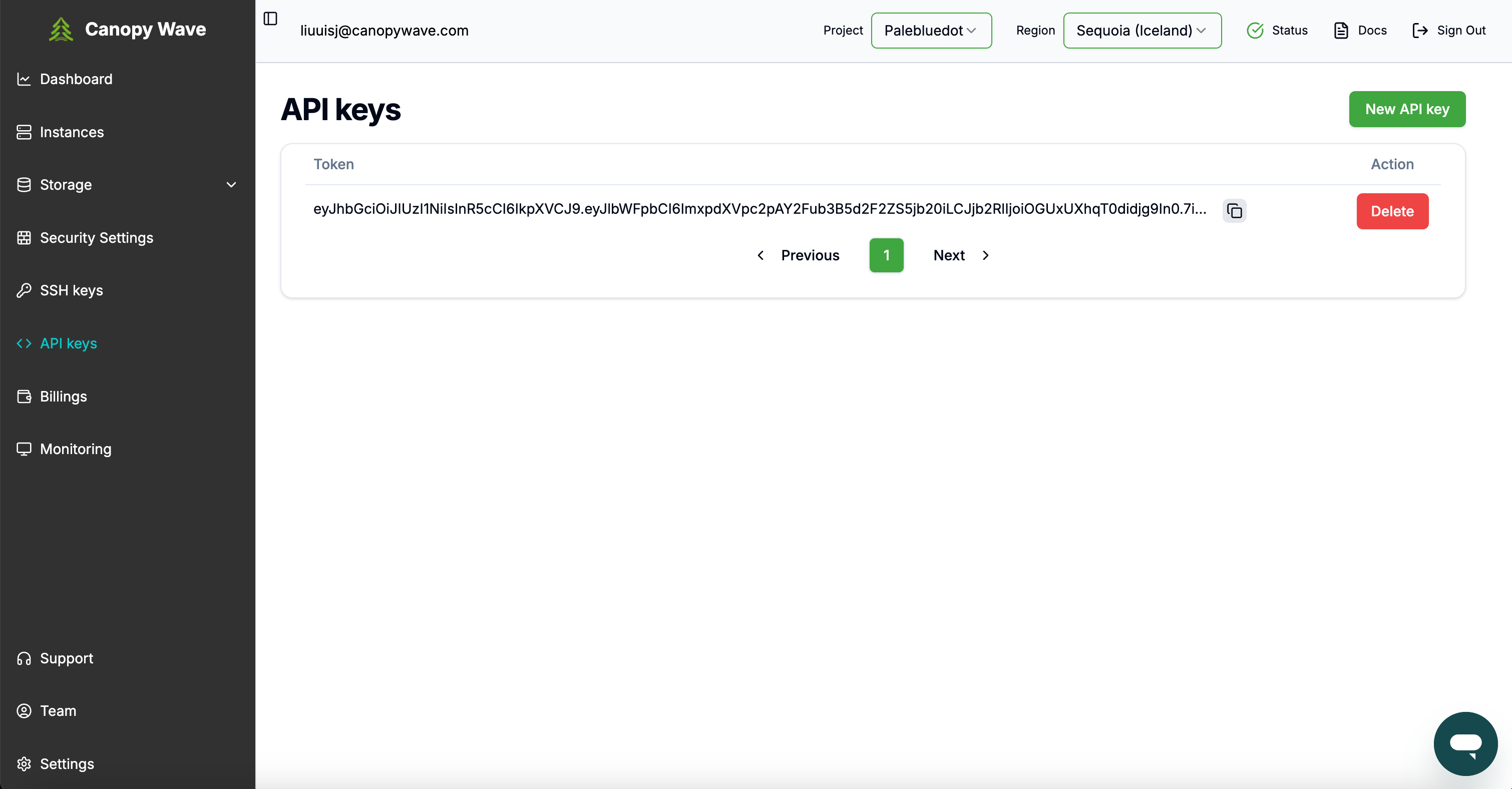

API Key Generation

Making an API Call

To make a request to the API, include an HTTP Bearer header with your API key:

Authorization: Bearer <YOUR-API-KEY>

A successful API call will return the following structure:

{
  "data": "<PAYLOAD>"
}

If the API call is invalid, an error Reply will be returned. For example, a 401 Unauthorized error indicates that the request was not authorized:

401: Unauthorized

The error Reply will include an error message, formatted as follows:

{
  "error": "<error message>"
}

REST API Endpoints

List projects
GET https://cloud-api.canopywave.io/api/v1/projects
Response: This will return the list of names of the projects you have permission to access. Many API calls will require project as a parameter
{
  "data": [
    "andrew.li@canopywave.com",
    "cynthia@canopywave.com"
  ]
}
List Instances
GET https://cloud-api.canopywave.io/api/v1/instances
Query Parameters
Required:
  • project - Specifies the project
Optional:
  • region - Specifies the data center
Response: Returns a list of instances in the specified region. If no region is specified, returns all instances across all regions
{
  "data": [
    {
      "flavor": "2x H100 (80 GB SXM5)",
      "id": "9bc56d2b-411b-47c3-b93a-691c3931009c",
      "launchedAt": "2025-05-24T01:17:09.000000",
      "name": "cynthia-2",
      "paymentMode": null,
      "publicIp": null,
      "region": "sequoia",
      "role": "worker",
      "status": "active"
    },
    {
      "flavor": "16 vCPU x86 Server",
      "id": "36346e91-90db-4c38-97cd-bf94e4a138ce",
      "launchedAt": "2025-05-24T00:45:10.000000",
      "name": "cynthia-test-snapshot",
      "paymentMode": null,
      "publicIp": null,
      "region": "sequoia",
      "role": "worker",
      "status": "active"
    },
    {
      "flavor": "4x H100 (80 GB SXM5)",
      "id": "730dcf5a-bada-45f3-9a32-e8657cf7b200",
      "launchedAt": null,
      "name": "cynthia-4",
      "paymentMode": null,
      "publicIp": null,
      "region": "sequoia",
      "role": "worker",
      "status": "error"
    }
  ]
}
List Running Instances
GET https://cloud-api.canopywave.io/api/v1/instances/running
Query Parameters
Required:
  • project - Specifies the project
  • region - Specifies the data center
Response: Returns all active instances for the specified region
{
  "data": [
    {
      "flavor": "2x H100 (80 GB SXM5)",
      "id": "9bc56d2b-411b-47c3-b93a-691c3931009c",
      "launchedAt": "2025-05-24T01:17:09.000000",
      "name": "cynthia-2",
      "paymentMode": null,
      "publicIp": "213.181.122.171",
      "region": "sequoia",
      "role": "worker",
      "status": "active"
    },
    {
      "flavor": "16 vCPU x86 Server",
      "id": "36346e91-90db-4c38-97cd-bf94e4a138ce",
      "launchedAt": "2025-05-24T00:45:10.000000",
      "name": "cynthia-test-snapshot",
      "paymentMode": null,
      "publicIp": null,
      "region": "sequoia",
      "role": "worker",
      "status": "active"
    }
  ]
}
List details of specified instance
GET https://cloud-api.canopywave.io/api/v1/instances/<instance-id>
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
Response: Returns the details of specified instance
{
  "data": {
    "OS-DCF:diskConfig": "MANUAL",
    "OS-EXT-AZ:availability_zone": "nova",
    "OS-EXT-SRV-ATTR:host": "h1-31-gpu",
    "OS-EXT-SRV-ATTR:hypervisor_hostname": "h1-31-gpu",
    "OS-EXT-SRV-ATTR:instance_name": "instance-00001bc9",
    "OS-EXT-STS:power_state": 1,
    "OS-EXT-STS:task_state": null,
    "OS-EXT-STS:vm_state": "active",
    "OS-SRV-USG:launched_at": "2025-05-24T01:17:09.000000",
    "OS-SRV-USG:terminated_at": null,
    "accessIPv4": "",
    "accessIPv6": "",
    "addresses": {
      "cynthia_canopywave_com-network": [
        {
          "OS-EXT-IPS-MAC:mac_addr": "fa:16:3e:9d:aa:19",
          "OS-EXT-IPS:type": "fixed",
          "addr": "172.16.0.252",
          "version": 4
        }
      ]
    },
    "config_drive": "",
    "created": "2025-05-24T01:15:50Z",
    "flavor": {
      "id": "7c7f97b0-b80f-44dc-859d-71e04834b1cc",
      "links": [
        {
          "href": "http://213.181.122.220:8774/flavors/7c7f97b0-b80f-44dc-859d-71e04834b1cc",
          "rel": "bookmark"
        }
      ]
    },
    "hostid": "421e003d15a3a862186597aae14c6e19d0ec66ffe8093222f71b59c5",
    "id": "9bc56d2b-411b-47c3-b93a-691c3931009c",
    "image": {
      "id": "66d16f9e-f984-4738-a170-97457ecfe4b6",
      "links": [
        {
          "href": "http://213.181.122.220:8774/images/66d16f9e-f984-4738-a170-97457ecfe4b6",
          "rel": "bookmark"
        }
      ]
    },
    "key_name": null,
    "links": [
      {
        "href": "http://213.181.122.220:8774/v2.1/servers/9bc56d2b-411b-47c3-b93a-691c3931009c",
        "rel": "self"
      },
      {
        "href": "http://213.181.122.220:8774/servers/9bc56d2b-411b-47c3-b93a-691c3931009c",
        "rel": "bookmark"
      }
    ],
    "metadata": {},
    "name": "cynthia-2",
    "os-extended-volumes:volumes_attached": [],
    "progress": 0,
    "security_groups": [
      {
        "name": "ssh"
      },
      {
        "name": "default"
      },
      {
        "name": "monitoring"
      }
    ],
    "status": "ACTIVE",
    "tenant_id": "a6a0dcd9c8764726b4ede6569fc26568",
    "updated": "2025-05-24T01:17:09Z",
    "user_id": "b7ef9befa66d456b866fa09603694b4a"
  }
}
List images
GET https://cloud-api.canopywave.io/api/v1/images
Response: Return all OS images that are available for the instance
{
  "data": [
    "CPU-Ubuntu.22.04",
    "GPU-Ubuntu.24.04",
    "GPU-Ubuntu.22.04",
    "CPU-Ubuntu.24.04"
  ]
}
List instance Types
GET https://cloud-api.canopywave.io/api/v1/instance-types
Response: Returns a list of all available instance types
{
  "data": [
    {
      "flavor": "H100-4",
      "images": [
        "GPU-Ubuntu.22.04",
        "GPU-Ubuntu.24.04"
      ],
      "name": "4x H100 (80 GB SXM5)",
      "price": 900,
      "priceHour": "$2.25 / gpu / hour",
      "specs": "80 cores, 800.0 GB RAM, 2 TB NVMe"
    },
    {
      "flavor": "H100-8",
      "images": [
        "GPU-Ubuntu.22.04",
        "GPU-Ubuntu.24.04"
      ],
      "name": "8x H100 (80 GB SXM5)",
      "price": 1800,
      "priceHour": "$2.25 / gpu / hour",
      "specs": "160 cores, 1536.0 GB RAM, 17 TB NVMe"
    },
    {
      "flavor": "m1.advanced",
      "images": [
        "CPU-Ubuntu.22.04",
        "CPU-Ubuntu.24.04"
      ],
      "name": "16 vCPU x86 Server",
      "price": 56,
      "priceHour": "$0.035 / cpu / hour",
      "specs": "16 cores, 32.0 GB RAM, 500 GB SSD"
    },
    {
      "flavor": "H200-8",
      "images": [
        "GPU-Ubuntu.22.04",
        "GPU-Ubuntu.24.04"
      ],
      "name": "8x H200 (80 GB SXM5)",
      "price": 1800,
      "priceHour": "$3.00 / gpu / hour",
      "specs": "160 cores, 1536.0 GB RAM, 17 TB NVMe"
    }
  ]
}
Launch Instance
POST https://cloud-api.canopywave.io/api/v1/instance-operations/launch
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • name: A unique identifier for the instance
  • flavor: Defines the type of instance
  • image: The operating system to be used
  • password: The password for default SSH login
{
  "region": "your-region",
  "project": "your-project",
  "name": "your-instance-name",
  "flavor": "your-selected-flavor",
  "image": "your-selected-image",
  "password": "your-password"
}
Optional:
  • keypair: The key used for SSH access
  • is_monitoring: Enables the monitoring page for the instance
{
  "keypair": "your-key-name",
  "is_monitoring": true
}
Response: Returns the id of the new instance
{
  "data": {
    "id": "e0ad011b-c690-4ab6-adc1-35187efff1d5"
  }
}
Restart Instance
POST https://cloud-api.canopywave.io/api/v1/instance-operations/restart
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • id: The instance id
{
  "region": "your-region",
  "project": "your-project",
  "id": "your-instance-id"
}
Response: Returns the id of the restarted instance
{
  "data": {
    "id": "e0ad011b-c690-4ab6-adc1-35187efff1d5"
  }
}
Terminate Instance
POST https://cloud-api.canopywave.io/api/v1/instance-operations/terminate
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • id: The instance id
{
  "region": "your-region",
  "project": "your-project",
  "id": "your-instance-id"
}
Response: Returns the id of the terminated instance
{
  "project": "cynthia@canopywave.com",
  "region": "sequoia",
  "id": "0952989f-8ed0-4228-8526-efff1a6b02bb0b4"
}
List SSH Keys
GET https://cloud-api.canopywave.io/api/v1/ssh-keys
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
Response: Return a list of ssh-keys for the specified region
{
  "data": [
    {
      "keypair": {
        "fingerprint": "bd:37:33:4d:8a:77:54:d3:f8:07:51:26:e2:9d:e7:db",
        "name": "cynthia-key-1",
        "public_key": "ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIMy/6SeyjtenrEyUDS4b7LBMCphEOPQu1tcnWGE7keZe andrew.li@canopywave.com"
      }
    },
    {
      "keypair": {
        "fingerprint": "20:65:c6:e6:06:fb:1e:50:e2:1b:10:c1:e0:36:08:3f",
        "name": "cynthia-key-test-generate-key-pair",
        "public_key": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCwo/sYPYxyE3fS2PqGq/pJAEfLuphL+u87Z5oDJJoBipNUiyLFWveX6yYCXTjiyfXu6J+VBzHhzx1lTFqqAQqsF1K/TD5/z6GBHnl0NsL4/FG0xmqYIzCGnGD3BN6NSlR4si1H7Jl0CZluXR2Oo37JHUA7V+wDjO1p8WVJVveiI1s20zsQPQOI4Zpc/1UOiS8NgK430k2Up9kqFxV5ory9bvz4QKN7LyabRAgTWtOsLIWD2hEpi6SZOf3MXiwL4c9KOWyheE5/y/38bcep000cTWjsx42v23B88BDuJzDTwPuZrLN7J2Ktk2V"
      }
    },
    {
      "keypair": {
        "fingerprint": "45:2e:fc:23:b2:11:9a:41:77:6f:3c:20:0d:d4:dc:0a",
        "name": "cynthia-key-2",
        "public_key": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCi716NkC1Ir9JbIYeBidS3ZvVNkArxUDybahX94weqlDGsxJFlz01bdO7HiA7I2QIocbUqD1I+LNEtMqFi63lr0GQAWhcwGL+/R2RpCNLj5y0VxMCIOYOmEh01qZ7zq2UJn9IvuvU5WD5cSSJrQnXLo1mdYM/eeNrr4NKOY+aoCdmI6gCO44wegG/f8nAMV+zyNw8i+duZXBsZMQTT29TgxcESGTYBY7TOc8WE/MlnbfNo9EHZ8ygYkDNQbfOE5ZcjqkXdHJqFJNyZfa1ko8RcIfltCNNprQLrrP4Qgaf1feaXnvaHUEHArE9"
      }
    }
  ]
}
Add SSH Key
POST https://cloud-api.canopywave.io/api/v1/ssh-keys
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • name: Name of the new key
{
  "region": "your-region",
  "project": "your-project",
  "name": "your-key-name"
}
Optional:
  • publicKey: If you want to import your key, enter your public key here
{
  "publicKey": "ssh-rsa xxxxxxxxxxxxxxx"
}
Response: If no optional parameter is provided, return the public key and private key that the system generates
{
  "data": {
    "privateKey": "-----BEGIN RSA PRIVATE KEY-----\nMIIEowIBAAKCAQEAou9ejZAtSK/SWyGHgYnUt2b1TZAK8VA8m2oV/eMHqpQxrMSR\nZc9NW3Tux4gOyNkCKHG1Kg9SPizRLTKhYut5a9BkAFoXMBi/v0dkaQjS4+/Dm6P0LSY6UmUTsBw\nTML8wArAnk7upfvb6rKaGxlYBGwKu/yH45I+/Xd\n-----END RSA PRIVATE KEY-----\n",
    "publicKey": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCi716NkC1Ir9JbIYeBidS3ZvVNkArxUDybahX94weqlDGsxJFlz01bdO7HiA7I2QIocbUqD1I+Y+aoCdmI6gCO44wegG/f8nAMV+zyNw8i+duZXBsZMQTT29TgxcESGTYBY7TOc8WE/MlnbfNo9EHZ8ygYkDNQbfOE5ZcjqkXdHJqFJNyZfa1ko8RcIfltCNNprQLrrP4Qgaf1feaXnvaHUEHArE9neDudxyyNtUjEi8038RVEOnWzvweP"
  }
}
Delete SSH Key
DELETE https://cloud-api.canopywave.io/api/v1/ssh-keys/<key-name>
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
{
  "data": {
    "name": "ddrgdfg"
  }
}
List Shared File Systems
GET https://cloud-api.canopywave.io/api/v1/file-systems
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
Response: Returns a list of all file systems for the specified region
Create Shared File System
POST https://cloud-api.canopywave.io/api/v1/file-systems
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • name: Define for identification
  • size: The size for file system in GB
{
  "region": "your-region",
  "project": "your-project",
  "name": "your-share-fileSys-name",
  "size": "your-selected size"
}
Response: Return the id the file system
Delete Shared File System
DELETE https://cloud-api.canopywave.io/api/v1/file-systems/<id>
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
List Volumes
GET https://cloud-api.canopywave.io/api/v1/volumes
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
Response: Return a list of ALL volumes for the specified region
Create Volume
POST https://cloud-api.canopywave.io/api/v1/volumes
Body
Required:
  • region: Specifies the data center
  • project: Specifies the project
  • name: Define for identification
  • type: The type of storage
  • size: The size for the volume in GB
{
  "region": "your-region",
  "project": "your-project",
  "name": "your-volume-name",
  "type": "hdd",
  "size": "your-selected size"
}
Response: Returns the id of the new volume
{
  "data": {
    "id": "c585949f-f88e-4515-b60e-6e6a6ff0da89"
  }
}
Delete Volume
DELETE https://cloud-api.canopywave.io/api/v1/volumes/<volume-id>
Query Parameters
Required:
  • region - Specifies the data center
  • project - Specifies the project
{
  "data": {
    "id": "c585949f-f88e-4515-b60e-6e6a6ff0da89"
  }
}
List public IP addresses
GET https://cloud-api.canopywave.io/api/v1/ips
Query Parameters
Required:
  • region:The available data center
  • project:Specifies the project
Response: Array of IP address objects
{
  "data": [
    {
      "id": "09e40279-e757-461f-a6e7-82829aba8536",
      "ip": "213.181.122.171",
      "server": "cynthia-2",
      "status": "ACTIVE"
    },
    {
      "id": "5bb56a56-372f-41ff-b746-52460f03e99d",
      "ip": "213.181.122.206",
      "server": null,
      "status": "DOWN"
    }
  ]
}
Allocate public IP address
POST https://cloud-api.canopywave.io/api/v1/ips
Body
Required:
  • region: The available data center
  • project: Specifies the project
{
  "data": {
    "id": "d3889c71-72b0-43bd-8ab5-7c8091264cf9",
    "ip": "213.181.122.218"
  }
}
Response: Object containing id and ip of newly-allocated IP address
Associate public IP address to instance
POST https://cloud-api.canopywave.io/api/v1/ips/<ipId>/associate
Body
Required:
  • region: The available data center
  • project: Specifies the project
  • instanceId: The ID of the instance to associate the IP with
{
  "data": {
    "instanceId": "9bc56d2b-411b-47c3-b93a-691c3931009c",
    "ipId": "09e40279-e757-461f-a6e7-82829aba8536",
    "portId": "e56bc512-14a0-4ecd-9480-ca83f8695c4c"
  }
}
Response: Object containing IDs of the IP, port, and instance
Disassociate public IP address from instance
DELETE https://cloud-api.canopywave.io/api/v1/ips/<ipId>/disassociate
Query Parameters
Required:
  • region : Specifies the data center
  • project : Specifies the project
{
  "data": {
    "id": "09e40279-e757-461f-a6e7-82829aba8536"
  }
}
Release public IP address
DELETE https://cloud-api.canopywave.io/api/v1/ips/<id>
Query Parameters
Required:
  • region : Specifies the data center
  • project : Specifies the project
{
  "data": {
    "id": "09e40279-e757-461f-a6e7-82829aba8536"
  }
}
(WIP) Get billing information
GET https://cloud-api.canopywave.io/api/v1/billing
Query Parameters
Required:
  • project : Specifies the project
Response: Return a list of billing info
{
  "billing_num": "example_value_1",
  "period_from": "example_value_2",
  "period_to": "example_value_3",
  "due_date": "example_value_4",
  "amount": "example_value_5",
  "timestamp": "example_value_6"
}
